Stimulation Sequence

The stimulation pattern <stimulation-pattern>is constructed from a composition of sequences, which can be deterministic or random. However, to use this procedure, the stimulation pattern (number of stimuli and randomisation) is generated when the procedure starts. Consequently, it is not possible to change the stimulation pattern while the procedure is running, so it cannot depend on participant performance during the procedure. Use the <sequential> procedure if the stimulation pattern depends on the participant, as that procedure is more versatile but also more complex to implement than this stimulation sequence procedure.

The stimulation pattern is first generated, yielding a set of temporal stimulation slots will be filled with stimuli; which stimuli are inserted into these stimulation slots is defined by the stimulus set <stimuli>. The stimuli set defines a set of stimuli and controls their randomisation. To fill the stimulation pattern, a batch of stimuli is first generated by the stimulus set. This batch of stimuli are inserted into the stimulation slots until all have been allocated, then a new batch is generated. This process is repeated until all stimulation slots have been allocated a stimulus.

The procedure delivers stimuli via the stimulation component, which, by default, uses the Stimulator and TriggerGenerator instruments to deliver stimuli and triggers, respectively. If more complex or multimodal stimuli are required, a <stimulation-scripts> can be defined to generate the stimuli/triggers from a Python script. When generations are done from a Python script, any visual, auditory or physical stimuli, and combinations thereof, that are possible with LabBench can be generated.

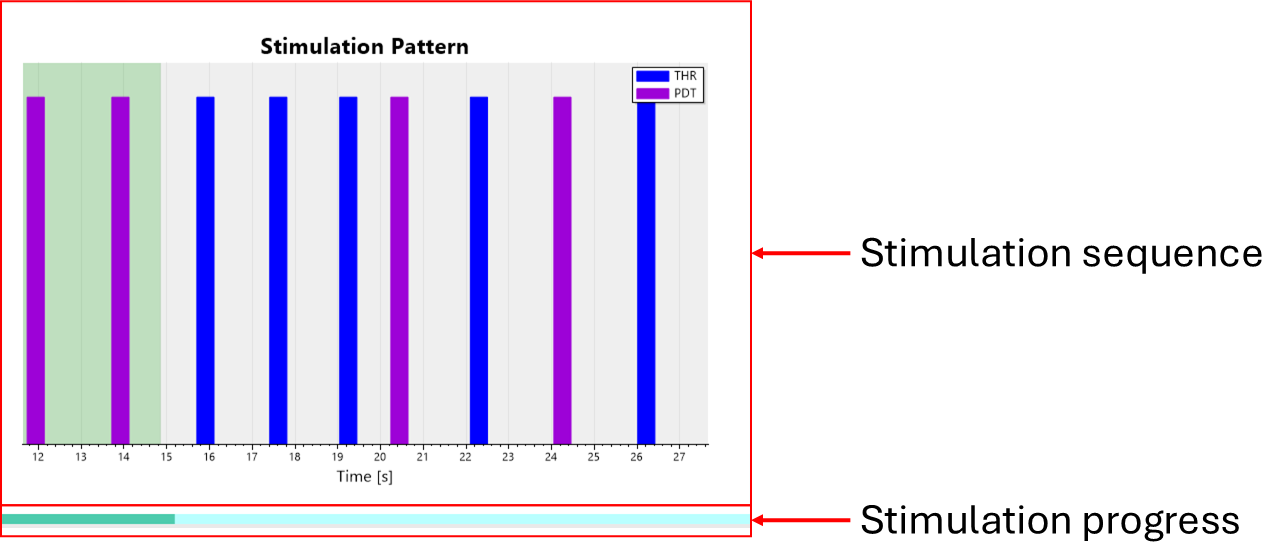

The procedure window for the sequential procedure is shown in Figure 1. The procedure window displays the stimulation sequence and its progress.

Figure 1: Procedure window for the stimulus sequence procedure.

Procedure definition

A Stimulation Sequences procedure can be defined with the <stimulation-sequence> element within the <procedures> element in the Experiment Definition File (*.expx):

<stimulation-sequence id="T01"
    name="Electrically Evoked Potentials"
    response-collection="ratio-rating"
    stimulus-update-rate="20000"
    trigger-update-rate="20000">

    <stimulation-pattern time-base="seconds">
        <sequence iterations="20">
            <uniformly-distributed-sequence
                maxTperiod="2"
                minTperiod="1"
                iterations="NumberOfStimuli" />
            <sequence Tperiod="10" stimulate="false"/>
        </sequence>
    </stimulation-pattern>

    <stimuli order="block-random">
        <stimulus name="Oddball" intensity="50" count="1">
            <!-- Content omited for brevity -->
        </stimulus>
        <stimulus name="Normal" intensity="20" count="4">
            <!-- Content omited for brevity -->
        </stimulus>
    </stimuli>
</stimulation-sequence>

With the following procedure specific attributes:

Definition of stimulation pattern

The <stimulation-pattern> element determines when stimuli are delivered. The pattern generates a set of time slots, each of which is either filled with stimuli from the <stimuli> set or with a pause.

The stimulation pattern is generated from a composition of two types of sequences:

• <sequence>: a sequence with deterministic parameters.
• <uniformly-distributed-sequence>: a random sequence with an period that is uniformly distrubed between a minimum and maximal period.

The time of a sequence is relative to the starting time of its parent sequence. If a sequence is root, meaning it has no parent, it is relative to time zero.

For calcuated parameters the following variables will be in scope:

• NumberOfStimuli: Number of stimuli that will be generated by the <stimuli> element each time a new batch of stimuli is required.

Sequence

Generate a deterministic sequence based on these parameters:

<sequence Tperiod="10" stimulate="false"/>

which has the following attributes:

A <sequence> may contain nested sequences. If child sequences are defined, the parent sequence acts as a container and its duration is derived from its children unless Tperiod is explicitly specified.

Uniformly distributed sequence

Generate a stochastic sequence where the inter-stimulus interval is uniformly distributed:

<uniformly-distributed-sequence
    minTperiod="1"
    maxTperiod="2"
    iterations="NumberOfStimuli" />

with the following attributes:

For each iteration, the period is sampled as:

Tperiod ~ U(minTperiod, maxTperiod)

Pauses

Pauses are generated when a sequence has pause="true". During execution, the procedure will halt progression of the stimulation timeline at these time points until it is resumed programmatically (e.g., via UI interaction or control logic). Pauses that fall outside the generated stimulation timeline are automatically discarded.

Definition of stimulus set

The <stimuli> element defines the set of stimuli that will populate the stimulation pattern.

<stimuli order="block-random">
    <stimulus name="Oddball" intensity="50" count="1" />
    <stimulus name="Normal" intensity="20" count="4" />
</stimuli>

with the following attributes:

Definition of stimuli

Each <stimulus> defines a stimulus prototype that may be instantiated multiple times per batch.

Stimulus attributes:

The total number of stimuli in a batch is:

NumberOfStimuli = Σ count

This value is exposed to calculated parameters and is used by the stimulation pattern.

Stimulus ordering

The order attribute controls how batches are generated:

For generated, the generator attribute must return a sequence of stimulus names of length NumberOfStimuli.

Batch generation and allocation

Stimuli are generated in batches of size NumberOfStimuli. Each batch is inserted sequentially into the stimulation slots. If the total number of stimulation slots is not divisible by the batch size, remaining slots are not filled.

During execution, the following variables are available:

• StimulusName: Name of the currently presented stimulus.
• BlockNumber: Index of the stimulus within the current batch.

Stimulus content

Each <stimulus> may optionally define:

<stimulus name="Oddball" intensity="50" count="1">
    <triggers>
        <trigger duration="10">
            <code output="trigger-output" />
        </trigger>
    </triggers>
    <stimulus>
        <pulse Is="x" Ts="1" />
    </stimulus>
</stimulus>

• <triggers>: Defines trigger output patterns.
• <stimulus>: Defines the physical or sensory stimulus (e.g., electrical pulse).

If <stimulation-scripts> is defined at the procedure level, stimulus generation may instead be handled entirely in Python, allowing full control over multimodal stimuli.

Execution model

1. The stimulation pattern is generated and converted into time slots.
2. The stimulus set generates batches of stimuli.
3. Stimuli are assigned to time slots.
4. The procedure iterates through time:
   • When a time slot is reached, the assigned stimulus is delivered.
   • Responses are sampled (if enabled).
   • Pauses are enforced when defined.
5. The procedure completes when all time slots have been processed.

The temporal resolution of execution is governed by the update rate, which dynamically adapts to the time remaining until the next stimulation event.

Scripting

The results from the stimulation sequence procedure can be accessed from calculated parameters and Python code using dot notation:

ProcedureID.Property

Global result properties

Stimulation data

Each stimulation sequence produces a list of stimulation events:

ProcedureID.Stimulations

Each stimulation entry contains:

Access by stimulus name

Stimulation events grouped by stimulus name can be accessed using the provided methods:

ProcedureID.GetStimulusNames()
ProcedureID.GetStimulation("StimulusName")

If a stimulus name is requested that does not exist in the sequence, an error is raised.

Each returned element has the same fields as described above.

Example usage

# Get all stimulus names
names = ProcedureID.GetStimulusNames()

# Access all stimulations for a specific stimulus
oddballs = ProcedureID.GetStimulation("Oddball")

# Compute mean reaction time for Oddball stimuli
rt = [s.ReactionTime for s in oddballs if s.ReactionTime >= 0]
mean_rt = sum(rt) / len(rt)

# Iterate all stimuli grouped by name
for name in ProcedureID.GetStimulusNames():
    stimulations = ProcedureID.GetStimulation(name)
    print(name, len(stimulations))

Notes

• The order of Stimulations reflects the temporal order of presentation.
• Missing responses are represented by -1.
• Reaction times are only available when response collection is enabled.
• Stimulus names are case-sensitive when accessed via dictionary or dot notation.

Example protocols

• Introduction to stimulation sequences
